High Efficiency Multirotor Drone Motor 15060 With 45'' Propeller And Low Vibration Controller

Name: High Efficiency Multirotor Drone Motor 15060 With 45 Propeller And Low Vibration Controller
Brand: Furious Motor
Price: 1722 USD

China High Efficiency Multirotor Drone Motor 15060 With 45'' Propeller And Low Vibration Controller wholesale

Brand Name : Furious Motor

Model Number : 15060

Certification : CE

Place of Origin : China

MOQ : 1

Price : $1722

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 3000 pcs per month

Delivery Time : 5-8 working days

Packaging Details : Carton witn protection (EPE)

Model : 15060

Dimension : 150mm * 60mm

KV : 72

Max. Thrust : 56KG

Max. Torque : 31N.m

Max. RPM : 3588

Suggested ESC : 24S 200A

Suggested Prop : 45 inch propeller

Max. Current : 174A

Max. Voltage : 90V

Max. Power : 15KW

Li - Po : 14S - 24S

Hall Sensor : Optional

Weight : 2.5KG

Application : Drone, paramotor

Contact Now

Intoroduction

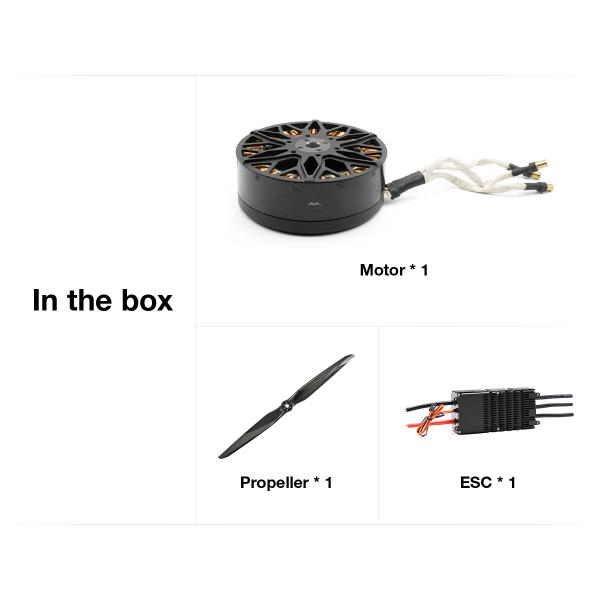

The Furious Motor 15060 brushless motor is expertly engineered to excel across a wide range of aerial missions, such as multirotor drones, delivery systems, camera-equipped drones, quadcopters, and heavy-lift platforms.

Featuring an impressive maximum thrust of up to 56kg within a remarkably lightweight 2.5kg frame, this motor is built for outstanding performance. Seamlessly paired with a 45-inch propeller and a 24S 200A ESC, the 15060 motor delivers exceptional efficiency and dependability, ensuring fluid operation across diverse and demanding conditions.

Tech Specs

System

Max. Thrsut	58 kg / rotor
Takeoff Weight	20 kg - 29 kg / rotor
Suggested ESC	24 S 200 A
Suggested Propeller	45 inch 2-blade propeller
Suggested Battery	12 S - 24 S
Working Temperature	-20 °C ~ 50 °C
Total Weight	3.44 kg
Application	Multi-rotor drone, paramotor and paraglider

Motor

Model	150-60
KV	72
Max. Thrsut	58 kg
Max. Torque	31 N·m
Max. RPM	3588
Dimension	150 mm * 60 mm
Weight	2.5 kg

ESC

Model	24 S 200 A
Suggested Battery	12 S ~ 24 S (Li-Po)
PMW Signal	3.3 V / 5 V
Pulse Width	900 us ~ 2000 us
Signal Frequency	50 Hz ~ 400 Hz
Max. Input Voltage	DC 50 V ~ 100 V
Max. Current	240 A
Weight	595 g
Dimension	140.5 mm * 66.6 mm * 34.4 mm

Propeller

Model	45 inch 2-blade
Diameter	45 inch
Material	Carbon fiber
Weight	350 g

Details

High Efficiency Multirotor Drone Motor 15060 With 45'' Propeller And Low Vibration Controller

High-Efficiency Multirotor Drone Motor 15060 With 45-Inch Propeller And Low-Vibration Controller
